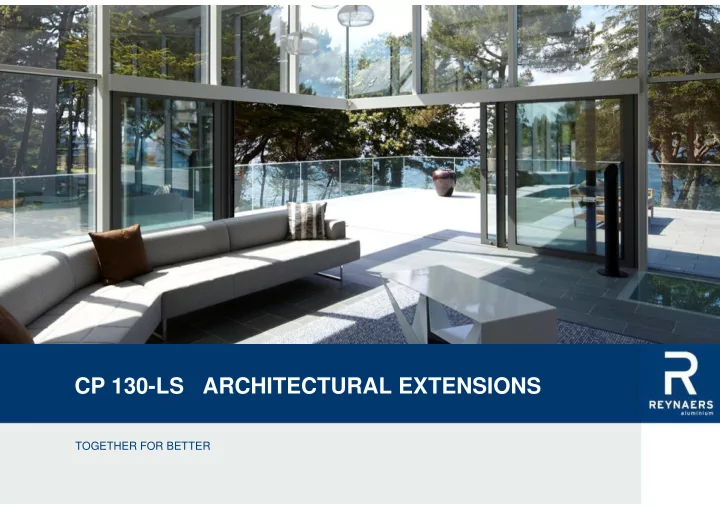

CP 130-LS ARCHITECTURAL EXTENSIONS TOGETHER FOR BETTER
Context Insight ‘The world is your wallpaper - extend your living room with the outside’ Architectural trend: indoor and outdoor are integrated. Boundaries disappear. Contemporary living spaces can benefit from large sliding elements: they create a visual extension to the outdoors, a sense of space and allow lots of light to enter. Promise Our premium sliding system CP 130-LS is now available with pocket solution to hide the sliding vents if opened, multi-rail to open up till 8 vents and zero-threshold for easy access. Designed to meet the needs of the North-American market, the novelties are also very attractive to other markets. Tested according to EN and ASTM standards. 28 juli 2014 2
CP 130-LS ARCHITECTURAL EXTENSIONS Subject of the launch Different extensions to CP 130-LS are available in a modular concept, allowing also the combination of these extensions. This creates a highly flexible system offering good performances. Pocket solution The pocket solution is a modular system, which enables all vents to slide into your wall, creating an even greater open space without any visible elements. For optimal flush aesthetics in the open position, the vents can be provided the identical finish to the wall. The pocket solution is available for the lift and sliding systems in duo rail, 3-rail or up to 8-rail compositions and zero threshold as well. Multi-rail An innovative clamping solution allows the expansion of the outer frames of the sliding system from 2 to up to 8 rails. These multi rail solutions allow designs with very large openings. Therefore special connection pieces are available to create outer frames which exceed 7 meter length. Zero threshold For easy and unobstructed access, a additional zero threshold solution can be applied, in which the floor finishing can continue. The dedicated rail profiles are available in different heights depending on the floor finish. These separate rail profiles give the possibility to stop the rail where the element movement ends, thus improving the aesthetics of the floor finish. The new extensions can be combined with the existing configurations, including corner. 28 juli 2014 3
CP 130-LS ARCHITECTURAL EXTENSIONS Benefits Fabricators Comfort of a modular system � Modular system � Multi-rail solution with only 1 clamping profile � Minimal number of articles – maximum number of configurations Architects Architectural flexibility � Multiple configurations, including corner, multi-rail and pocket � Create sense of space and allow a lot of light � Indoor and outdoor are integrated. Boundaries disappear. User Premium system designed for high end buildings � Superior quality � Best comfort: fulfilling most recent and near future market demands on insulation and performance � Different access solutions to cover different needs and wishes � Open up your complete sliding window and hide the vents in the wall 28 juli 2014 4
CP 130-LS ARCHITECTURAL EXTENSIONS Business Market (drivers) • Main driver: Extension of architectural possibilities • Main target market: High-end market of sliding doors in the North-American continent • Focus markets (geographic) •USA •Canada •Open to all markets: Other markets can also benefit! 28 juli 2014 5
CP 130-LS ARCHITECTURAL EXTENSIONS Business PRICING Price without with comparison pocket pocket POCKET standard 100% 160% 3-rail POCKET 4-rail 100% 112% Price zero comparison standard treshold 2-rail 100% 111% 3-rail 100% 107% standard 3-rail 4-rail 5-rail price 100% 138% 173% surface 100% 133% 167% Vent width 2000mm, Vent height 2500mm 28 juli 2014 6
TECHNICAL INFORMATION Extensions on standard CP 130-LS CP 130-LS � POCKET SOLUTION � MULTI-RAIL � ZERO THRESHOLD 28 juli 2014 7
TECHNICAL INFORMATION MODULAR SYSTEM POCKET MULTI-RAIL ZERO TRESHOLD 28 juli 2014 8
POCKET SOLUTION
POCKET SOLUTION Concept � Vents slides behind wall � indoor and outdoor are integrated. � Flush .. (open and closed) � Extra finishing � Flush � Modular system 28 juli 2014 10
POCKET SOLUTION Closed Concept � Vents slides behind wall. � indoor and outdoor are integrated. � Boundaries disappear. Opened 28 juli 2014 11
Flush finishing. POCKET SOLUTION Concept Doors open � Flush finishing. Opened or closed � flush finishing Flush finishing. 3d Doors closed Flush finishing. 28 juli 2014 12
Smaller interlock profile (006.1881.00) POCKET SOLUTION Concept � Extra finishing � flush. different interlock profiles Extra finishing (same as wall finishing) Flush finishing. 28 juli 2014 13
POCKET SOLUTION Concept Same profile (006.1877.XX) � Modular system only 2 profiles � 2 – 3 – 4 - .. rail 28 juli 2014 14
POCKET SOLUTION Modular POCKET MULTI-RAIL ZERO TRESHOLD 28 juli 2014 15
POCKET SOLUTION Technical information � Built on standard CP 130-LS System � Double interlock � Wind and water tightness. � Double brush inside and outside � Wind and water tightness. � Wall finishing profile. � Distance from wall ensured. � Consealed handle. 28 juli 2014 16
POCKET SOLUTION Technical information � Built on standard CP 130-LS CP 130-LS 28 juli 2014 17
POCKET SOLUTION Main cover profile Technical information 006.1875.XX � Main cover profile 28 juli 2014 18
Double interlock POCKET SOLUTION 006.1881.00 006.1882.00 Technical information � Double interlock � Wind and water tightness. 28 juli 2014 19
POCKET SOLUTION Double brush (081.9241.07) on both sides Technical information � Double brush inside and outside � Wind and water tightness. 3d 28 juli 2014 20
POCKET SOLUTION Wall finishing profile Technical information 006.1880.XX � Wall finishing profile 28 juli 2014 21
POCKET SOLUTION Technical information � Distance pieces � Wind and water tightness. � Perfect distance between wall and outer frame Set Distance pieces 080.9780.04 28 juli 2014 22
POCKET SOLUTION Technical information � Consealed handle 062.7866.PA � 300 kg 28 juli 2014 23
MULTI-RAIL
MULTI-RAIL Concept Same profile Standard 3-rail Same profile 28 juli 2014 25
MULTI-RAIL Technical information � Frame connection bottom Additional end piece per extra rail End piece standard 3-rail 28 juli 2014 26
MULTI-RAIL Technical information Additional end piece per extra rail � Frame connection top End piece standard 3-rail 28 juli 2014 27
MULTI-RAIL Technical information � Drainage principle � parts can be milled separated Space between parts gasket 28 juli 2014 28
MULTI-RAIL Modular POCKET MULTI-RAIL ZERO TRESHOLD 28 juli 2014 29
ZERO THRESHOLD
ZERO THRESHOLD Concept � Modular system with zero threshold finishing � Separated rail profiles � possibility to stop where wanted. � Different heights rail profiles � Clamping system � expansion to multi-rail � Drainage holes milled before clamping. 28 juli 2014 31
ZERO THRESHOLD Concept � ZERO threshold finishing Flush finishing. Flush finishing. 28 juli 2014 32
ZERO THRESHOLD Concept � Bottom drainage profiles 28 juli 2014 33
ZERO THRESHOLD Concept � Separated rail profiles � Different heights of rail profiles Floor ≤ 38mm Floor ≤ 25mm 28 juli 2014 34
ZERO THRESHOLD Concept � Rail profile only where needed � continious floor 28 juli 2014 35
ZERO THRESHOLD Concept � Drainage principle 28 juli 2014 36
ZERO THRESHOLD modular POCKET MULTI-RAIL ZERO TRESHOLD 28 juli 2014 37
TEST RESULTS Performances tabel CP 130-LS dimensions Results ASTM Results EN Zero treshhold (3-rail) Air: class 2 3493 x 3100 AW 150Pa R-PG15 Wind: class C1 Water: class 2A Multirail (4-rail) Air: class 3 4603 x 3067 AW180Pa R-PG15 Wind: class B2 Water: class 4A Pocket (3-rail standard) ZERO TRESHOLD Air: class 3 3972 x 2567 AW 150Pa R-PG15 Wind: class C2 Water: class 4A 28 juli 2014 38
