Cops and robber games in graphs Nicolas Nisse Inria, France Univ. - PowerPoint PPT Presentation

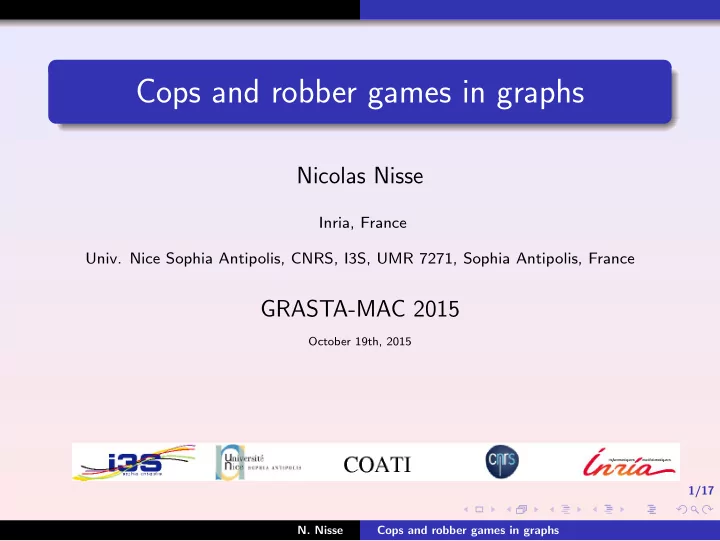

Cops and robber games in graphs Nicolas Nisse Inria, France Univ. Nice Sophia Antipolis, CNRS, I3S, UMR 7271, Sophia Antipolis, France GRASTA-MAC 2015 October 19th, 2015 1/17 N. Nisse Cops and robber games in graphs Pursuit-Evasion Games


  1. Cops and robber games in graphs Nicolas Nisse Inria, France Univ. Nice Sophia Antipolis, CNRS, I3S, UMR 7271, Sophia Antipolis, France GRASTA-MAC 2015 October 19th, 2015 1/17 N. Nisse Cops and robber games in graphs

  2. Pursuit-Evasion Games 2-Player games A team of mobile entities (Cops) track down another mobile entity (Robber) Always one winner Combinatorial Problem: Minimizing some resource for some Player to win e.g., minimize number of Cops to capture the Robber. Algorithmic Problem: Computing winning strategy (sequence of moves) for some Player e.g., compute strategy for Cops to capture Robber/Robber to avoid the capture natural applications: coordination of mobile autonomous agents (Robotic, Network Security, Information Seeking...) but also: Graph Theory, Models of Computation, Logic, Routing... 2/17 N. Nisse Cops and robber games in graphs

  3. Pursuit-Evasion: Over-simplified Classification Differential Games Combinatorial approach [Basar,Oldser'99] [Chung, Hollinger,Isler'11] continuous environments Graphs (polygone, plane...) [ Guibas,Latombe,LaValle,Lin,Motwani'99] Randomized Deterministic Stategies Stategies Centralized Distributed Algorithms Algorithms Lion and Man Hunter and Rabbit Cops and Robber games Graph Searching games [Littlewood'53] [Isler et al.] (algorithmic interpretation of treewidth/pathwidth) 3/17 N. Nisse Cops and robber games in graphs

  4. Pursuit-Evasion: Over-simplified Classification [Chung,Hollinger,Isler’11] 3/17 N. Nisse Cops and robber games in graphs

  5. Pursuit-Evasion: Over-simplified Classification Differential Games Combinatorial approach [Basar,Oldser'99] [Chung, Hollinger,Isler'11] continuous environments Graphs (polygone, plane...) [ Guibas,Latombe,LaValle,Lin,Motwani'99] Randomized Deterministic Stategies Stategies Centralized Distributed Algorithms Algorithms Lion and Man Hunter and Rabbit Cops and Robber games Graph Searching games [Littlewood'53] [Isler et al.] (algorithmic interpretation of treewidth/pathwidth) Today: focus on Cops and Robber games Goal of this talk : illustrate that studying Pursuit-Evasion games helps Offer new approaches for several structural graph properties Models for studying several practical problems Fun and intriguing questions 3/17 N. Nisse Cops and robber games in graphs

  6. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game 4/17 N. Nisse Cops and robber games in graphs

  7. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 4/17 N. Nisse Cops and robber games in graphs

  8. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node 4/17 N. Nisse Cops and robber games in graphs

  9. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge 4/17 N. Nisse Cops and robber games in graphs

  10. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge (2) R slides along ≤ 1 edge 4/17 N. Nisse Cops and robber games in graphs

  11. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge (2) R slides along ≤ 1 edge 4/17 N. Nisse Cops and robber games in graphs

  12. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge (2) R slides along ≤ 1 edge Goal of the C & R game Robber must avoid the Cops 4/17 N. Nisse Cops and robber games in graphs

  13. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge (2) R slides along ≤ 1 edge Goal of the C & R game Robber must avoid the Cops Cops must capture Robber (i.e., occupy the same node) 4/17 N. Nisse Cops and robber games in graphs

  14. Cops & Robber Games [Nowakowski and Winkler; Quilliot, 1983] Rules of the C & R game Place k ≥ 1 Cops C on nodes 1 2 Visible Robber R at one node Turn by turn 3 (1) each C slides along ≤ 1 edge (2) R slides along ≤ 1 edge Goal of the C & R game Robber must avoid the Cops Cops must capture Robber (i.e., occupy the same node) Cop Number of a graph G cn ( G ): min # Cops to win in G 4/17 N. Nisse Cops and robber games in graphs

  15. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  16. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  17. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  18. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  19. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  20. Let’s play a bit 5/17 N. Nisse Cops and robber games in graphs

  21. Let’s play a bit cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  22. Let’s play a bit cn(clique)=? cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  23. Let’s play a bit cn(clique)=? cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  24. Let’s play a bit cn(clique)=? cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  25. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  26. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  27. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  28. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  29. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  30. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  31. Let’s play a bit cn(clique)=1 cn(cycle)=? cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  32. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  33. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  34. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  35. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  36. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  37. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=? cn(tree)=1 5/17 N. Nisse Cops and robber games in graphs

  38. Let’s play a bit cn(clique)=1 cn(cycle)=2 cn(Petersen)=3 cn(tree)=1 5/17 Easy remark: For any graph G , cn ( G ) ≤ γ ( G ) the size of a min dominating set of G . N. Nisse Cops and robber games in graphs

  39. Complexity: a graph G , cn ( G ) ≤ k ? Seminal paper: k = 1 [Nowakowski and Winkler; Quilliot, 1983] cn ( G ) = 1 iff V = { v 1 , · · · , v n } and, ∀ i < n , ∃ j > i s.t., N ( v i ) ∩ { v i , · · · , v n } ⊆ N [ v j ]. can be checked in time O ( n 3 ) (dismantable graphs) Generalization to any k [Berarducci, Intrigila’93] [Hahn, MacGillivray’06] [Clarke, MacGillivray’12] cn ( G ) ≤ k ? can be checked in time n O ( k ) ∈ EXPTIME EXPTIME-complete in directed graphs [Goldstein and Reingold, 1995] NP-hard and W[2]-hard [Fomin,Golovach,Kratochvil,N.,Suchan, 2010] (i.e., no algorithm in time f ( k ) n O (1) expected) PSPACE-hard [Mamino 2013] EXPTIME-complete [Kinnersley 2014] 6/17 N. Nisse Cops and robber games in graphs

  40. Complexity: a graph G , cn ( G ) ≤ k ? Seminal paper: k = 1 [Nowakowski and Winkler; Quilliot, 1983] cn ( G ) = 1 iff V = { v 1 , · · · , v n } and, ∀ i < n , ∃ j > i s.t., N ( v i ) ∩ { v i , · · · , v n } ⊆ N [ v j ]. can be checked in time O ( n 3 ) (dismantable graphs) Generalization to any k [Berarducci, Intrigila’93] [Hahn, MacGillivray’06] [Clarke, MacGillivray’12] cn ( G ) ≤ k ? can be checked in time n O ( k ) ∈ EXPTIME EXPTIME-complete in directed graphs [Goldstein and Reingold, 1995] NP-hard and W[2]-hard [Fomin,Golovach,Kratochvil,N.,Suchan, 2010] (i.e., no algorithm in time f ( k ) n O (1) expected) PSPACE-hard [Mamino 2013] EXPTIME-complete [Kinnersley 2014] 6/17 N. Nisse Cops and robber games in graphs
