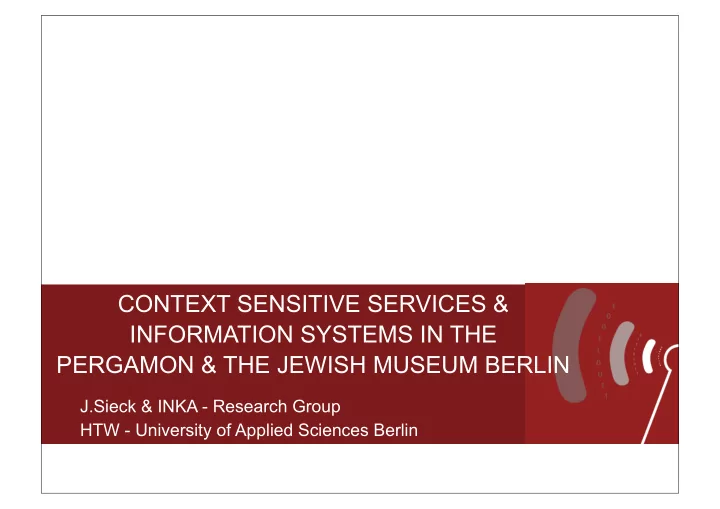

CONTEXT SENSITIVE SERVICES & INFORMATION SYSTEMS IN THE PERGAMON & THE JEWISH MUSEUM BERLIN J.Sieck & INKA - Research Group HTW - University of Applied Sciences Berlin

Requirements: Multimedia Guide for the JMB The realisation of an indoor navigation system through the building and through the permanent exhibition • high-performance, reliable & precise • reasonably priced • installation without attracting attention • easy maintenance 2 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Positioning with RFID RFID scenario for the JMB RFID reader RFID transponder • Transponders located in the building sending unique IDs • Mobile device-based localisation RFID transponder • System requirements:  active RFID system  reasonably priced 10 m 3 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

MM Guide Content 4 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

LBS in the Jewish Museum Berlin, an Example 5 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

LBS in the Jewish Museum Berlin, an Example 6 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Information Collection 64 7 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Technical Solution JMB Installation Synchronisierung Internet Installation ... 8 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

À La Carte – Login with Spoon Code 9 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

À La Carte – Recipes 10 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

À La Carte – Recipe Example 11 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Some Numbers used spoons (6.11. 11:00) room I room II room III facts: room IV room V 8301 sold spoons (tickets) room VI 53513 recipes collected room VII 2397 ID‘s on the website (7.11.) room VIII room IX room X 0 1750 3500 5250 7000 12 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

More Numbers Exhibition: October, 9th 2009 to February 28th 2010 sold spoons (tickets): ~ 45.000 used spoons : ~ 75 % spoons on the website : ~ 50 % 13 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Pergamon Museum / Museum of Islamic Art 14 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Pergamon Museum / Museum of Islamic Art • „Schahname - 1000 years book of the persian kings“ • Combination of both approaches in one single installation  Passive RFID for direct collection of digital contents  Active RFID to trigger events and digital contents on mobile devices  Combination of infrastructure and technology 15 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Schahname -1000 Years Book of ..... 16 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Passive Installation • Passive Installation  Mac Mini  Metratec RFID-Reader  Feedback visuell: Arduino with LEDs  Feedback Audio: Sound  RFID: 13,56 MHz, ISO 15693 I-Code 17 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Technical Solution JMB Installation Synchronisierung Internet Installation ... 18 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Architecture and Functionality 19 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Stories 20 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Usage of the Six Media Stations in March 8000 7000 6000 5000 4000 3000 2000 1000 0 1 2 3 4 5 6 21 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Usage of the Website same day 1 day 2 days 3 days same day ≥ 7 days 4 days 5 days 17 % 20 % 6 days 7 days ≥ 7 days 7 days 4 % 6 days 1 day 5 % 18 % 5 days 6 % 4 days 2 days 9 % 11 % 3 days 9 % 22 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Active Installation  OpenBeacon tags in media stations  Visitor uses an iPod with soft coupled OpenBeacon tag Station 1 OpenBeacon System RFID Tag Station 2 OpenBeacon System RFID Tag RFID Tag R F I D T a g 23 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Active Installation 24 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Active Installation 25 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Kids Guide in the Jewish Museum Berlin 26 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Kids Guide in the Jewish Museum Berlin 27 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

ein Ort zum Lesen - a Place for Reading 28 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

ein Ort zum Lesen - a Place for Reading 29 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

ein Ort zum Lesen - a Place for Reading 30 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

conclusion Kulturvergnügen ! 31 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin

Join the Museumsvergnügen - Come to Berlin! http://inka.htw-berlin.de/kui 32 33 Florenz 20130515 Jürgen Sieck, HTW - University of Applied Sciences Berlin
