Northern Monroe Fire Territory New Fire Station 494 W. Williams Rd. Bloomington, IN 47404 Elevations Floor Plan Index of Sheets: A1 A2 as Proposed by GM Development, LLC Northern Monroe Fire Territory New Fire Station Bloomington, IN

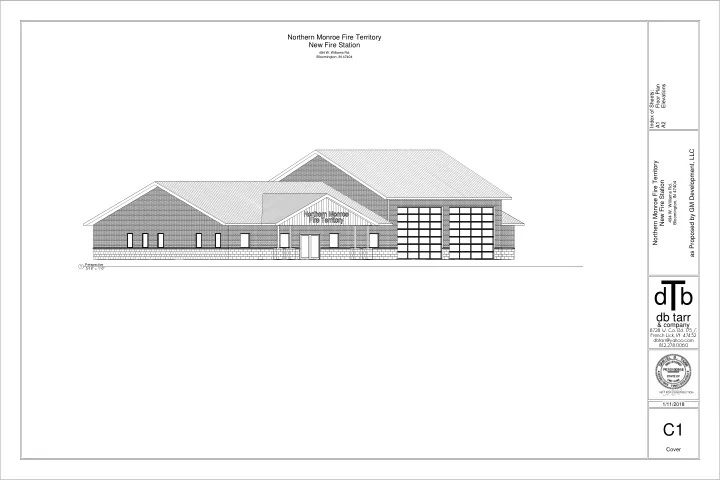

  1. Northern Monroe Fire Territory New Fire Station 494 W. Williams Rd. Bloomington, IN 47404 Elevations Floor Plan Index of Sheets: A1 A2 as Proposed by GM Development, LLC Northern Monroe Fire Territory New Fire Station Bloomington, IN 47404 494 W. Williams Rd. Perspective 1 3/16" = 1'-0" d b db tarr & company 8728 W. Co. Rd. 175 S. French Lick, IN 47432 dbtarr@yahoo.com 812.278.0060 NOT FOR CONSTRUCTION 1/11/2018 C1 Cover

  2. Elevations Floor Plan Index of Sheets: A1 A2 South Elevation 1 North Elevation 2 1/8" = 1'-0" 1/8" = 1'-0" as Proposed by GM Development, LLC Northern Monroe Fire Territory New Fire Station Bloomington, IN 47404 494 W. Williams Rd. East Elevation West Elevation 3 4 1/8" = 1'-0" 1/8" = 1'-0" d b db tarr & company 8728 W. Co. Rd. 175 S. French Lick, IN 47432 dbtarr@yahoo.com 812.278.0060 NOT FOR CONSTRUCTION 1/11/2018 A2 Elevations

  3. 96'-0" Elevations Floor Plan 84'-0" 12'-0" Index of Sheets: 52'-0" 14'-0" 2'-0" 14'-0" 2'-0" A1 A2 Shower / Restroom Dining 6'-4 3/4" 119 112 10'-0" as Proposed by GM Development, LLC 14'-4 1/2" 13'-11 1/2" Northern Monroe Fire Territory Shower / 16'-8" Restroom Kitchen 6'-6 1/2" 22'-5 1/8" 118 113 4'-1" 17'-11 1/2" New Fire Station 11'-5 1/2" Bloomington, IN 47404 494 W. Williams Rd. 10'-11 1/2" Storage 7'-11 1/2" 126 Bunk 11'-3 1/8" 117 20'-8" Laundry / Pantry 8'-6" 114 Living 7'-10 1/2" EMS Storage 16'-0" 111 125 11'-3 1/8" Bunk 7'-2 1/2" 11'-3 1/8" 116 12'-0" Restroom 7'-10 1/2" 124 48'-0" Bay 1 Bay 2 5'-0" 12'-7" 72'-0" 120 121 Closet 8'-0" 14'-0 1/2" 11'-3 1/8" Bunk 110 13'-4" Fittness Radio 115 Decon. 11'-3 1/8" d b 9'-3" 109 108 17'-1" 123 Extractor 8'-9 1/2" db tarr 8'-5 1/2" 3'-9" 17'-10 1/2" Turn Out & company Hazmat Room Office 107 11'-6" 11'-10 1/2" 8728 W. Co. Rd. 175 S. 5'-11 1/2" 5'-7 1/4" 5'-7 1/4" 4'-2" 122 101 French Lick, IN 47432 8'-1 1/2" Print / File Restroom Restroom 8'-5" Closet dbtarr@yahoo.com 14'-0 1/2" 103 104 105 812.278.0060 106 12'-1" 11'-10 1/2" 12'-0 1/4" 14'-0" Admin. Area Office 100 102 6'-6" NOT FOR CONSTRUCTION 12'-0" 36'-7" 4/4/2018 A1 25'-0" 27'-0" 14'-0" 2'-0" 14'-0" 2'-0" 12'-0" Floor Plan Floor Plan 1 3/16" = 1'-0"

  4. Northern Monroe Fire Territory New Fire Station Project GM Development Pricing Proposal Acquisition $ % Notes Land: $0 0.0% Construction $ % Notes Sitework/Paving/Sidewalks $175,000 14.8% Assumes all utilities are at the property line Increase perimeter foundation wall from 6" to 8" $4,880 0.4% Add Limestone accents over windows on front façade $2,250 0.2% Add Simpson Tie Down straps $2,125 0.2% Increase stem wall in bay area an addt'l 12" $4,280 0.4% Design‐Build Construction ‐ Base Building $925,780 78.0% Per the scope listed in the qualitative proposal and per 3/20/18 plans 0.0% Total Construction: $1,114,315 93.9% Soft Costs $ % Notes Architectural/Structural/MEP/Fire Protection Design $0 0.0% Included in "Design‐Build Construction ‐ Base Building" Environmental/Geo $0 0.0% Assumes Phase I and Geotech provided by NMFT Civil plans $10,000 0.8% Government Fees (Permits) $6,000 0.5% Legal/Financing Issuance Costs $20,000 1.7% Includes bank legal and bank fees. Assumes NMFT pays for own FA/Attorney Fees. Utility/Tap Fees $10,000 0.8% Survey $0 0.0% Assumes NMFT provides the ALTA survey Construction Period Insurance (Builder's Risk/GL) $5,020 0.4% Data/Phone/Internet $18,000 1.5% Inspection/Testing $3,000 0.3% $0 0.0% Total Soft Costs: $72,020 6.1% Lump Sum Project Costs: $1,186,335 100.0%

  5. Northern Monroe Fire Territory New Fire Station Project GM Development Pricing Proposal Acquisition $ % Notes Land: $0 0.0% Construction $ % Notes Sitework/Paving/Sidewalks $175,000 14.8% Assumes all utilities are at the property line Increase perimeter foundation wall from 6" to 8" $4,880 0.4% Add Limestone accents over windows on front façade $2,250 0.2% Add Simpson Tie Down straps $2,125 0.2% Increase stem wall in bay area an addt'l 12" $4,280 0.4% Design‐Build Construction ‐ Base Building $925,780 78.0% Per the scope listed in the qualitative proposal and per 3/20/18 plans 0.0% Total Construction: $1,114,315 93.9% Soft Costs $ % Notes Architectural/Structural/MEP/Fire Protection Design $0 0.0% Included in "Design‐Build Construction ‐ Base Building" Environmental/Geo $0 0.0% Assumes Phase I and Geotech provided by NMFT Civil plans $10,000 0.8% Government Fees (Permits) $6,000 0.5% Legal/Financing Issuance Costs $20,000 1.7% Includes bank legal and bank fees. Assumes NMFT pays for own FA/Attorney Fees. Utility/Tap Fees $10,000 0.8% Survey $0 0.0% Assumes NMFT provides the ALTA survey Construction Period Insurance (Builder's Risk/GL) $5,020 0.4% Data/Phone/Internet $18,000 1.5% Inspection/Testing $3,000 0.3% $0 0.0% Total Soft Costs: $72,020 6.1% Lump Sum Project Costs: $1,186,335 100.0% Additional Alternates to Consider (Not included above) Furnishings, Fixtures, & Equipment $50,000 Suggestion only. Commercial Stove/Hood/Appliances are in this alternate Underground stormwater in lieu of natural sheeting $27,000 Not needed, but pricing in case NMFT prefers underground Standing Seam roof upgrade $33,000 Generator $30,000 $140,000
