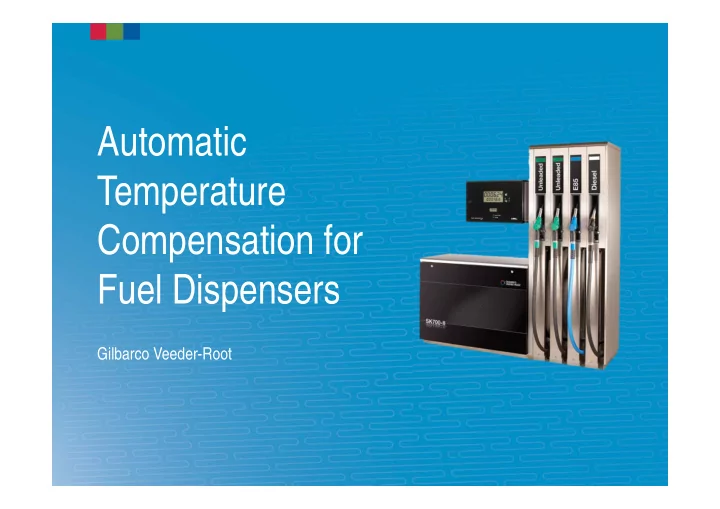

Automatic Temperature Compensation for Fuel Dispensers Gilbarco Veeder-Root

No more lost litres With Gilbarco Veeder-Root ATC Enabled Dispensers Fuel retailers recognize that dispensing fuel with a temperature lower than 15 ° C over time could result in financial losses. Now with the GVR ATC solution, your dispensers will automatically display and charge the fuel to the customers at 15 ° C, regardless the actual temperature of the delivery. So every litre counts!

Fundamentals of ATC > ATC stands for Automatic Temperature Compensation > As a dispenser option, ATC automatically corrects the delivery volume to compensate for fuel expansion or contraction due to temperature changes > ATC-enabled dispensers display and charge the fuel volume as it would be at a reference temperature of 15 ° C, regardless of the actual temperature of the delivery > Installed as a factory fitted option or a retrofit kit > Mandatory in Belgium on all new installations as of Jan.1, 2008 > In the UK ATC is also known as Standard Temperature Accounting and is approved but not mandatory

Temperature Impact on Fuels > All liquids, including fuel, expand and contract with temperature increase or decrease; > Therefore metering the same fuel under different temperatures will produce different readings; > Additionally, different fuels expand and contract at different rates, as follows: > Unleaded petrol would change its volume by ± 1% for every 8 ° C change in temperature > Diesel would change its volume by ± 1% for every 12 ° C change in temperature > LPG* would change its volume by ± 1% for every 4 ° C change in temperature. * Assuming 50/50 mix of Propane and Butane

Gilbarco Veeder-Root ATC Features > Own solution for dispensers with Sandpiper-2 > Available for gasoline, diesel, LPG and E85 grades > ATC technology is not applicable for biodiesels > Factory fitted or retrofit kits for > SK700-II (incl. IOD) > Horizon > Frontier Europe > Product temperature range -40 ° C to +50 ° C > Approvals: MID,OIML, United Kingdom W&M

How Does Gilbarco Veeder-Root ATC Work ATC consists of three core components 1 1. Modified manifold with a hole to insert a temperature 3 probe 2. A probe to accurately measure the temperature of the fuel being metered 3. An electronic board that performs the automatic 2 correction to 15 ° C, based on the actual temperature measured by the probe and the pre programmed fuel grade density factor 4 The volume dispensed is measured and displayed as corrected to 15 ° C 4. As illustrated on photo No 4

ATC Benefits > Key reason for ATC offering is Belgian legislative drive > ATC on dispensers has seen voluntary uptake in GAS and UK due to perceived savings by the fuel retailer industry > It is commonly recognized that dispensing fuel with a temperature lower than 15 ° C over a period of time could result in fuel losses; > GVR has developed a calculation tool to help retailers estimate the potential fuel losses for their specific sites (grades mix, throughput and average delivery temperatures); > Without ATC, the retailer in the example below, could lose € 16,400 for every 4 mln. liters of annual throughput, if the site’s average delivery temperature is 12 ° C; > Combining GVR ATC with GVR FMS service provides the most comprehensive measurement of the benefits. Annual Sales Volume % Price (Euro) Compensated Delivery Tempe 15 Unleaded 60% 1.35 Diesel 40% 1.07 Throughput Uncompensated 2M Litres 3M Litres 4M Litres 5M Litres 7M Litres 8M Litres 9M Litres 10M Litres Delivery Temperature, C° 15 € 0 € 0 € 0 € 0 € 0 € 0 € 0 € 0 12 -€ 8,204 -€ 12,306 -€ 16,407 -€ 20,509 -€ 28,713 -€ 32,815 -€ 36,917 -€ 41,018
