Anomalous Excitation of Schumann Resonances before large earthquakes - PowerPoint PPT Presentation

Anomalous Excitation of Schumann Resonances before large earthquakes in Japan Jun IZUTSU, Kenji OHTA (Earth Watch - Safety Net Research Center, Chubu University) Masashi HAYAKAWA (University of Electro-Communications) EMSEV-DEMETER Joint

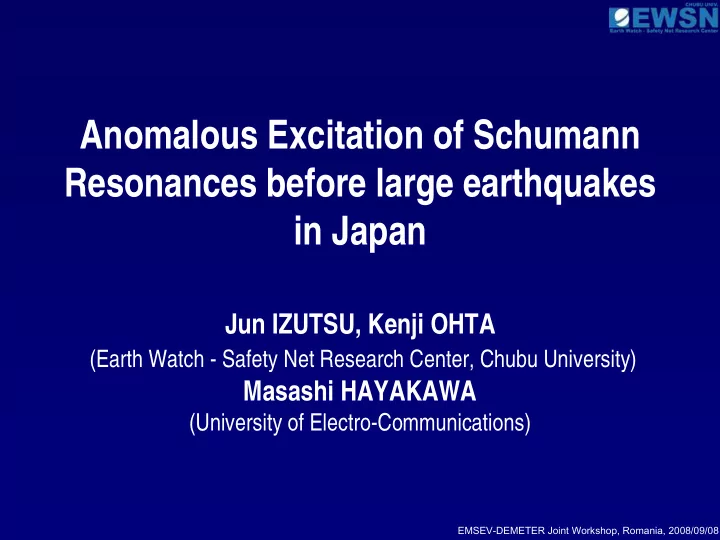

  1. Anomalous Excitation of Schumann Resonances before large earthquakes in Japan Jun IZUTSU, Kenji OHTA (Earth Watch - Safety Net Research Center, Chubu University) Masashi HAYAKAWA (University of Electro-Communications) EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  2. Earth Watch - Safety Net Research Center Chubu University Observation of electromagnetic wave “direct” ULF range (~30Hz) ELF range (223Hz and 17Hz) “indirect” VLF range (Terminator-Time method) EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  3. Observation Network Since 1998 (Chubu Univ.) EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  4. ULF Observation System Induction Coil Antenna 1.2m EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  5. ULF Observation System Induction Coil Antenna 1.2m Observation of magnetic field (Bx, By, Bz) EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  6. ULF Observation System Block diagram DL-708 Digital Oscilloscope EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  7. Observed data 100Hz sampling FFT analyze (N=1024; every 10.24 seconds) n=1 Schumann Resonance n=2 n=3 n=4 EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  8. Observed data Sonogram Schumann resonance is clearly observed. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  9. 2004 Mid-Niigata Earthquake EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  10. 10/23 M6.8 2004 Mid-Niigata Earthquake Nakatsugawa By 0.1 Hz The intensity at 0.1Hz increased from 10/2 to 10/6. By Goniometer method, we calculate the direction angle of this enhanced EM wave. The direction angle pointed to the area near the epicenter. Ohta et al., 2005 Ohta et al. (2005) EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  11. 2004 Mid-Niigata Earthquake Sonogram 2004/10/20 – 2004/10/24 M6.8 n=4 n=3 n=2 n=1 n=4 n=3 n=2 n=1 EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  12. 2004 Mid-Niigata Earthquake Sonogram 2004/10/20 18:00 - 24:00 n=3 Anomalous resonance at 18 Hz n=3 Anomalous resonance at 16 Hz The intensity of Schumann resonance (n=3) increased. Another resonance (18Hz and 16Hz) appeared. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  13. 2004 Mid-Niigata Earthquake Temporal change of the intensity from 10/19 to 10/27 (1 week) M6.8 The intensities of the Schumann resonance (n=3) and the anomalous resonance are synchronized. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  14. 2007 Noto Earthquake EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  15. 2007 Noto Earthquake Sonogram 2007/03/24 – 2007/03/28 M6.9 n=3 n=2 n=1 n=3 n=2 n=1 EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  16. 2007 Noto Earthquake Sonogram 2007/03/25 06:00 - 12:00 M6.9 n=3 Anomalous resonance at 18 Hz n=3 Another resonance (18Hz only) appeared. The intensity of Schumann resonance (n=3) didn’t increase so much. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  17. 2007 Noto Earthquake Temporal change of the intensity from 03/22 to 03/29 (1 week) M6.8 The intensity of the Schumann resonance (n=3) didn’t increase. The intensity of the anomalous resonance increased just before the earthquake. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  18. 2007 Noto Earthquake Shinojima station was installed in Feb. 2007. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  19. 2007 Noto Earthquake Sonogram 2007/03/24 – 2007/03/28 M6.9 No anomalous resonance at Shinojima. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08

  20. Conclusion We observed anomalous Schumann resonance and another anomalous resonance before 2004 Mid- Niigata earthquake and 2007 Noto earthquake. The generation mechanism of these anomalous resonances was obscure. ( local problem ? ) We installed 3 rd ULF station last year. We expect to acquire new information by our new observation network. EMSEV-DEMETER Joint Workshop, Romania, 2008/09/08
