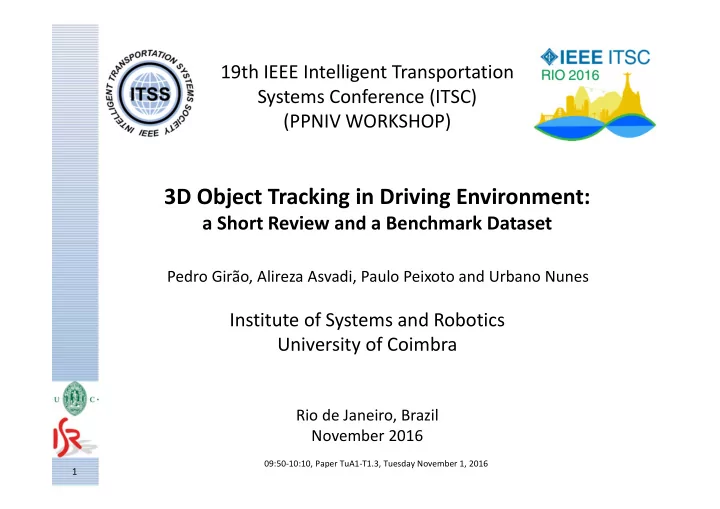

19th IEEE Intelligent Transportation Systems Conference (ITSC) (PPNIV WORKSHOP) 3D Object Tracking in Driving Environment: a Short Review and a Benchmark Dataset Pedro Girão, Alireza Asvadi, Paulo Peixoto and Urbano Nunes Institute of Systems and Robotics University of Coimbra Rio de Janeiro, Brazil November 2016 09:50 ‐ 10:10, Paper TuA1 ‐ T1.3, Tuesday November 1, 2016 1
Motivation ‐ Autonomous cars will be available in the near future ‐ Object tracking is a crucial component The paper provides: 1) an overview on 3D object tracking methods Most of previous literature are focused on the data association problem. Here, the focus is in the assessment of object appearance modeling in object tracking methods 2) A framework/dataset to allow the evaluation and comparison of object tracking methods (in the autonomous driving context) Companion paper: 3D Object Tracking using RGB and Lidar Data, A. Alireza, P. Girão, P. Peixoto, U. Nunes, ITSC2016 2
Part 1: 3D Object Tracking in Driving Environment: a Short Review 3
Taxonomy of object tracking using 3D sensors (using stereo and 3D ‐ Lidar) Object tracking algorithms can be divided into two categories: • Tracking ‐ by ‐ detection (or Discriminative) Approaches • Generative Approaches (without training) 4
Object detection mechanism in object tracking methods D ‐ Discriminative (tracking by detection) D1 ‐ Supervised Object Detectors (with training): Localize the object using a pre ‐ trained detector ( e.g. , DPM), and next link ‐ up the detected positions over time (mostly computer vision ‐ based approaches / using RGB ‐ D images). D2 ‐ Model ‐ based Approaches: Detecting and tracking a target by fitting a pre ‐ defined object shape. G ‐ Generative (without training) G1 ‐ Segmentation ‐ based Approaches (clustering) Partition the PCD into perceptually meaningful regions that can be used for object detection (remove ground ‐ > clustering ‐ > tracking each cluster) G2 ‐ Motion ‐ based Approaches: Moving object detection can be achieved by background modeling and subtraction’ or ‘frame differencing’. 5
Object appearance modeling in object tracking methods (a) represents a scan of a vehicle which is split up by an occlusion from top view (b) the centroid (in the point model) representation of the target object (c) 2D rectangular or 2.5D box shape based representations (d) 2.5D grid, 3D voxel grid, or octree data structure ‐ based representation (e) object delimiter ‐ based representation (f) 3D reconstruction of the shape of the target object 6
Some of the recent 3D object tracking methods for autonomous driving applications Object tracking algorithms are composed of three main components: object representation, search mechanism, and model update. 7
Part 2: 3D Object Tracking in Driving Environment: a Benchmark Dataset 8
3D O bject T racking in D riving Environments (3D ‐ OTD) Benchmark Dataset A benchmark dataset was constructed out of the ‘KITTI Object • Tracking Evaluation’, and the sequence attributes and challenging factors were extracted. Two baseline object trackers were implemented. • Two evaluation criteria were considered for the performance • analysis. The evaluation scripts, source codes for the baseline object trackers • and the ground ‐ truth data, corresponding to this work, are available online. 9
3D ‐ OTD Dataset Sensory perception data: (KITTI Object Tracking Dataset/3D ‐ OTD Dataset) • 3D ‐ LiDAR point clouds (PCD) • Stereo vision data: Right/left color images • GPS/IMU localization data Annotation/Label data: KITTI Object Tracking Dataset 3D ‐ OTD Dataset • Focus is in assessment of • Focused on the evaluation object appearance modeling of data association problem 50 annotated sequences • • Object tracklets (object labels may • Each sequence denotes full change during the tracking) • Large dataset (21 seq. for training & track of only one target 29 seq. testing/each seq. multiple objects) object (if one scenario includes two target objects, it is considered as two seq.) • Specifications/challenging factors of each seq. extracted 10
3D ‐ OTD Dataset • In the original KITTI dataset, objects are annotated with their tracklets, and generally the dataset is more focused on the evaluation of data association problem in discriminative approaches. • Our goal is to provide a tool for the assessment of object appearance modeling in both the discriminative and generative methods. Therefore, instead of tracklets, full track of each object is extracted. 11
3D ‐ OTD Dataset The sequence attributes and challenging factors are extracted: Sequence attributes: • Object type • Object status Ego ‐ vehicle situations • • Scene condition Challenges: • Occlusion (OCC) Object pose (POS) • • Distance (DIS) variations to Ego ‐ vehicle • Changes in the relative velocity (RVL) of the object to the Ego ‐ vehicle 12
Baseline 3D object tracking algorithms Two baseline object trackers were implemented: A. Baseline KF 3D Object Tracker (3D ‐ KF): A 3D Constant Acceleration (CA) KF with a Gating Data Association (DA) is used for the robust tracking of the object centroid in the PCDs. B. Baseline MS 3D Object Tracker (3D ‐ MS): The Mean Shift (MS) iterative procedure is used to locate the object . � 0.5� | max iter. < 3 13
Quantitative evaluation methodology • The overlap rate (the intersection ‐ over ‐ union metric) in 3D: • Orientation error: difference in the Yaw angle (Yaw angle describes the heading of the object): The percentage of frames with successful occurrence (the overlap ratio exceed 0.25 / the orientation error less than 10 degrees) is used as a metric to measure tracking performance. 14
Evaluation results and analysis of metric behaviors (y ‐ axis: normalized cumulative sum of the successful cases; x ‐ axis: normalized nº of frames) The metrics for the two baseline trackers (3D ‐ MS and 3D ‐ KF) are computed based ‐ on OCC, POS, DIS and RVL challenges. The 3D ‐ KF achieves higher success rate because the 3D ‐ MS tracker may diverge to a denser nearby object (a local minima) instead of tracking the target object. However, the 3D ‐ MS tracker has a higher precision in orientation estimation. 15
A Comparison of Base ‐ line Trackers with the State ‐ of ‐ the ‐ art Computer Vision based Object Trackers Baseline trackers (3D ‐ MS and 3DKF), benefiting from highly reliable 3D ‐ LIDAR data, have superior performance over the state ‐ of ‐ the ‐ art approaches in Computer Vision field (SCM [37], and ASLA [38]). This is because, in autonomous driving scenarios, ego ‐ vehicle and objects are often moving. Therefore, object size and pose undergo severe changes (in the RGB image), which can easily mislead visual object trackers. [6] Y. Wu, J. Lim, and M. ‐ H. Yang, Object tracking benchmark, PAMI, vol. 37, no. 9, pp. 1834–1848, 2015. 16
Conclusion and future directions We presented: • A brief survey for 3D object tracking in driving environments • A benchmark dataset based ‐ on KITTI Object Tracking Evaluation • A quantitative evaluation methodology • Two baseline trackers • The evaluation scripts, source codes for the baseline object trackers and the ground ‐ truth data are available online: https://sites.google.com/site/amshmi12/downloads • We encourage other authors to evaluate their 3D object tracking methods using the 3D ‐ OTD evaluation benchmark, and make their results available! • An extension of the dataset and codes to include more sequences and trackers remains an area for future work. 17
VIDEO: The video represents the first two sequences (Car and Cyclist) from the 3D ‐ OTD dataset. 1 ‐ the top shows the 2D and 3D BB in the image; 2 ‐ and the bottom shows the 3D ‐ BB in PCD. Each sequence represents one object. For each sequence, the full track of each object is extracted. Thank you for your attention 18
This work has been supported by the FCT project ”AMSHMI2012 ‐ RECI/EEIAUT/0181/2012” and project ”ProjBDiagnosis and Assisted Mobility ‐ Centro ‐ 07 ‐ ST24 ‐ FEDER ‐ 002028” with FEDER funding, programs QREN and COMPETE. 19
